Electro-polishing

Electropolishing using POLIGRAT processes creates and optimizes a variety of technical, functional and decorativecharacteristics together with removal of burrs and particles in a single operation. The process is tried and tested in an industrial context, is reliable and cost-effective. It often replaces several other traditional work steps.
The areas in which electropolishing can be applied are correspondingly varied. Electropolishing is often essential in situations where increased demands are made over the function and appearance of metallic surfaces.

THE PRINCIPLE

Electropolishing works by targeting the microstructure, without changing the form and macrostructure of the surface.

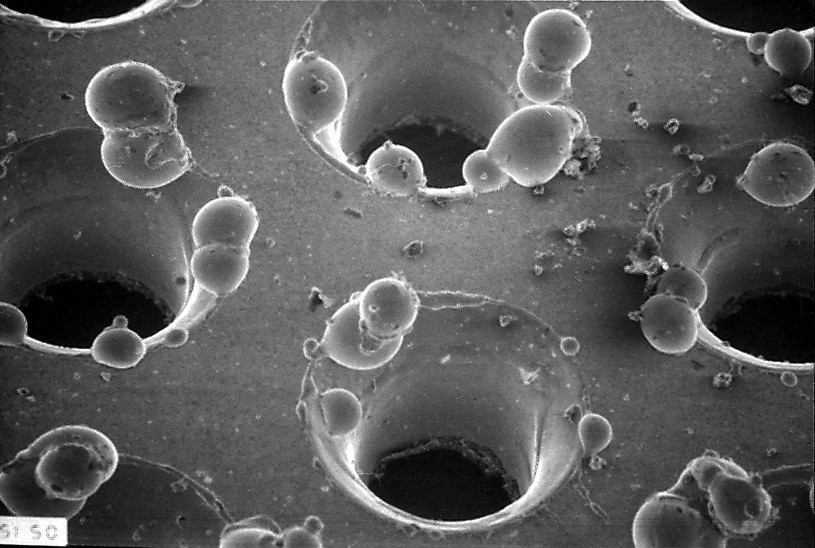

Whilst exerting no mechanical or thermal stress onto the parts, electro-polishing removes a thin layer of material from the surface by means of anodic dissolution. All impurities, particles, micro-cracks, structural defects and local tension it contains are thereby removed.

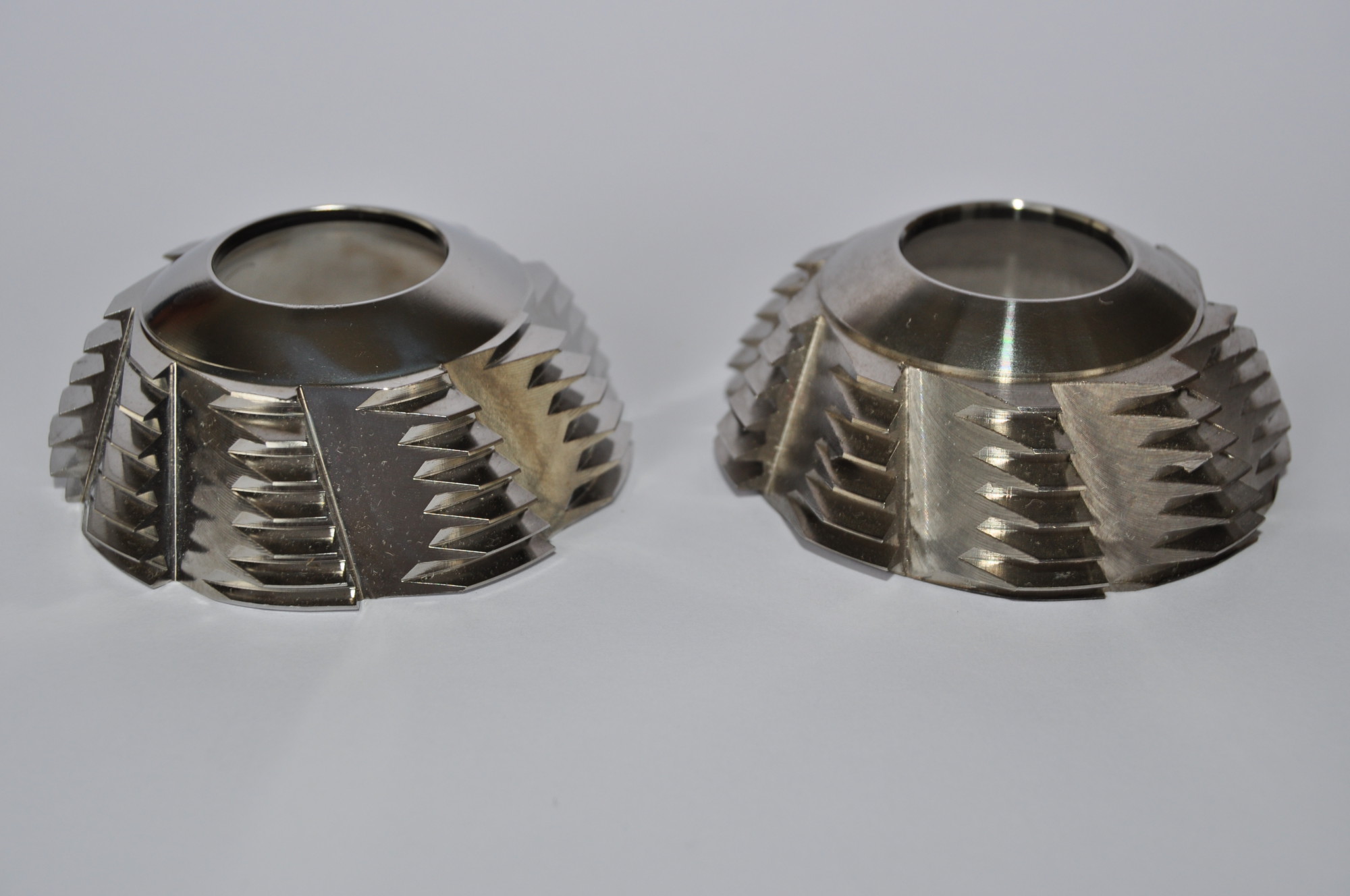

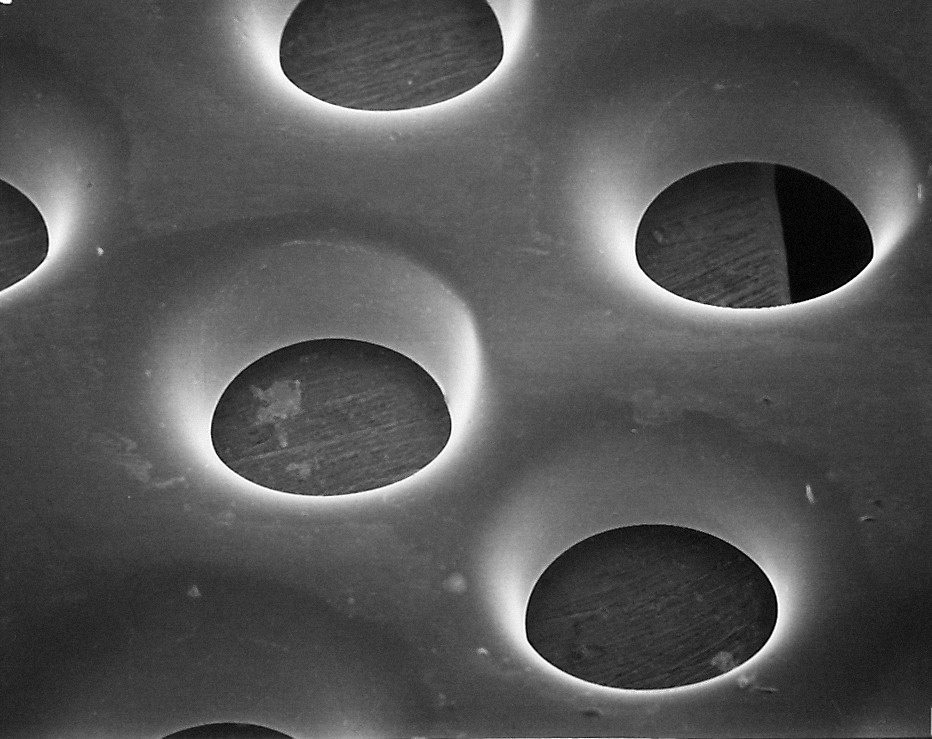

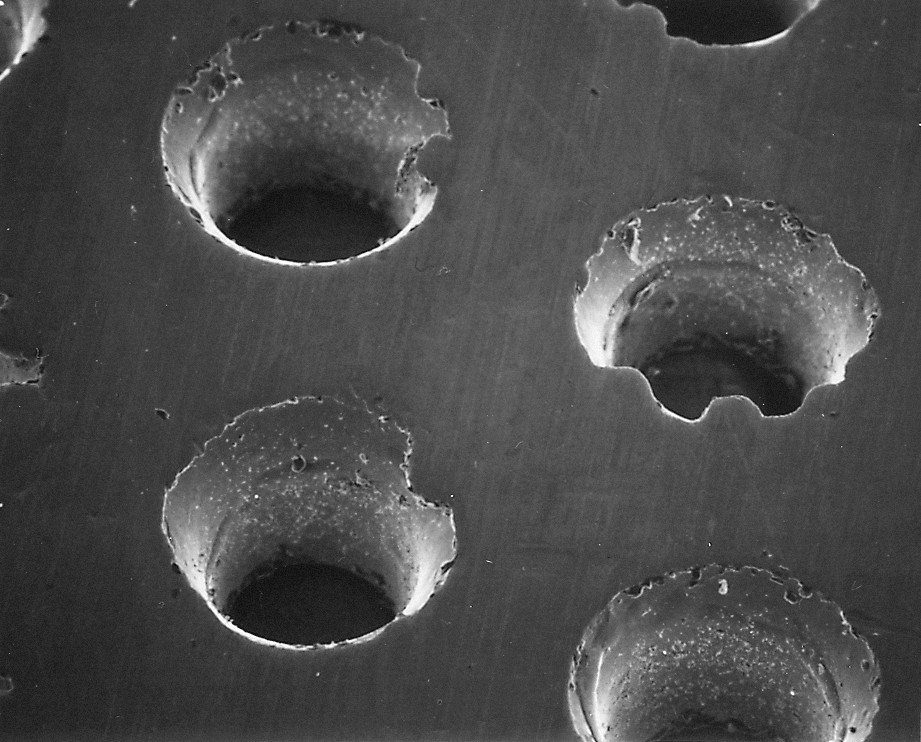

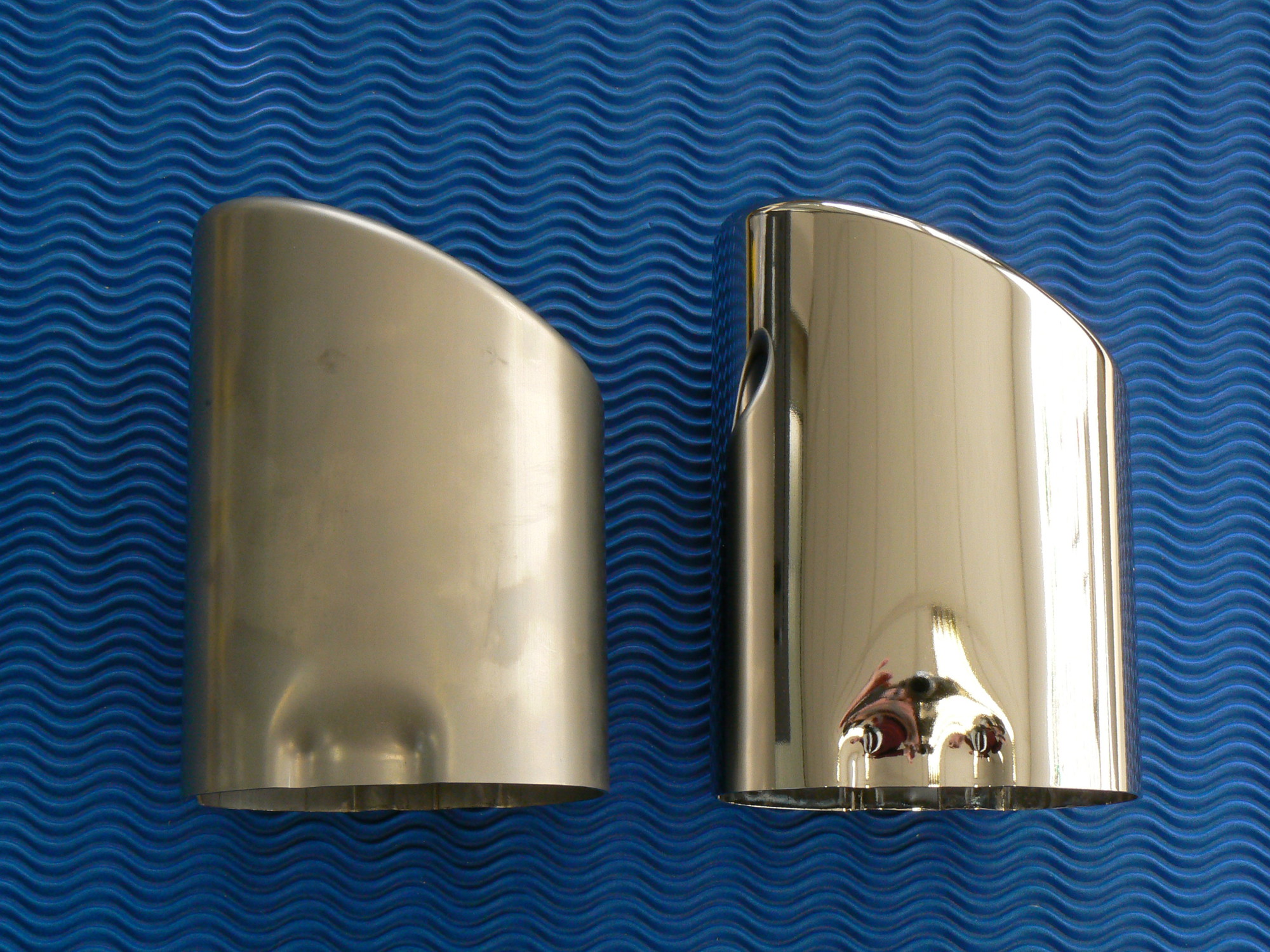

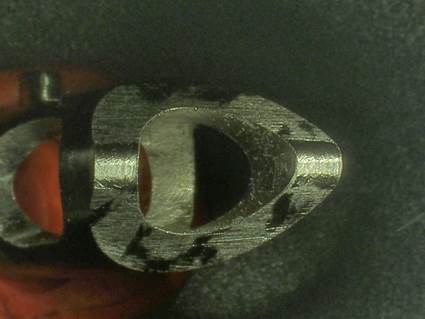

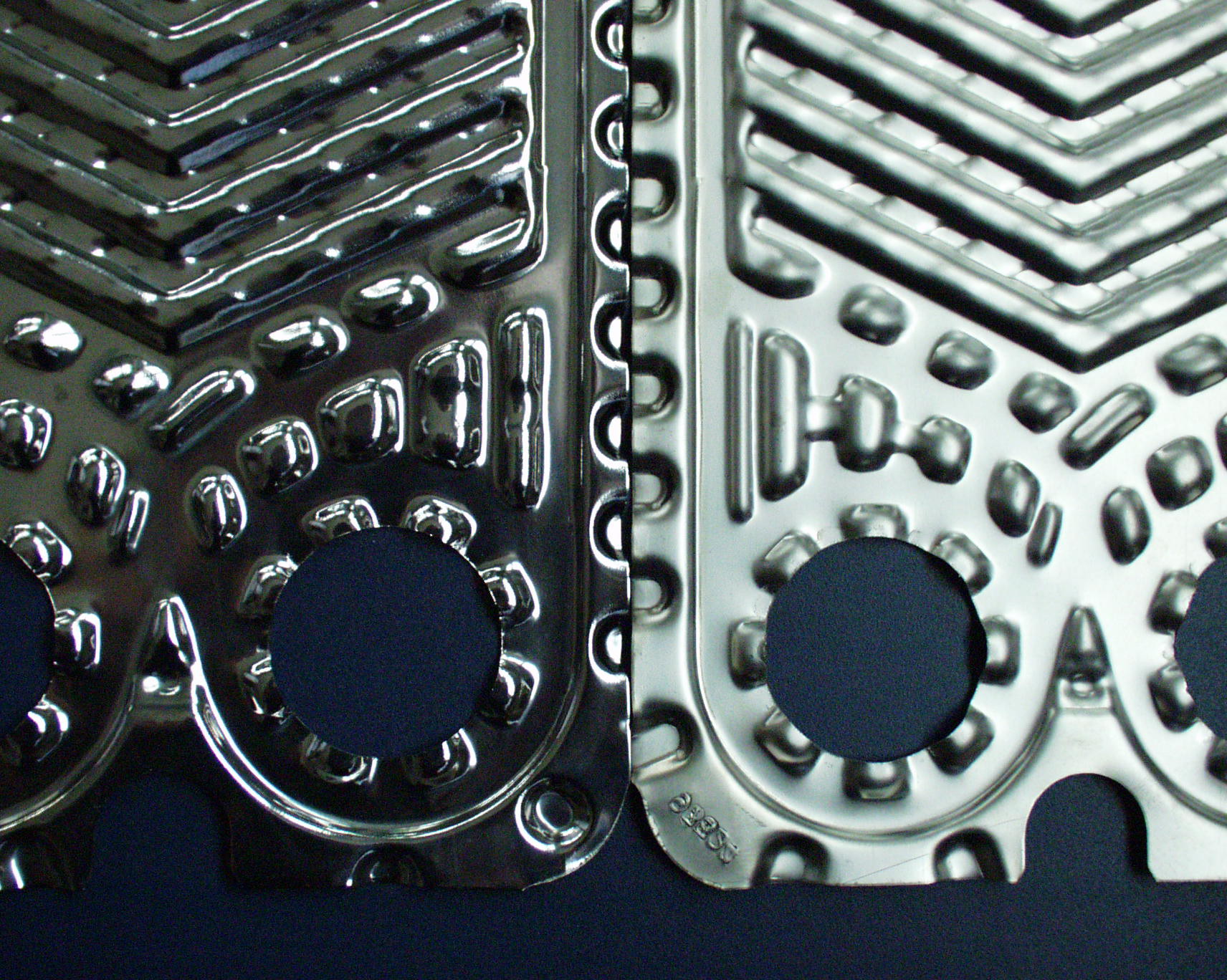

The increased material removal on corners and edges ensures that the latter are reliably deburred and smoothed. Electropolished surfaces are free of burrs and particles, metallically pure, shiny, smooth in the microstructure and free from defects.The surface displays the optimal characteristics of the base material processed.

THE APPLICATION

Electropolishing can be applied to a broad spectrum of parts and materials. It is usually carried out in immersion baths or in special installations. In order to guarantee optimal results, the process should be adjusted to suit the form of the parts, the material and the end requirements. This is usually effected practically by processing sample parts.

The processing can be used for:



• Individual parts on contact racks

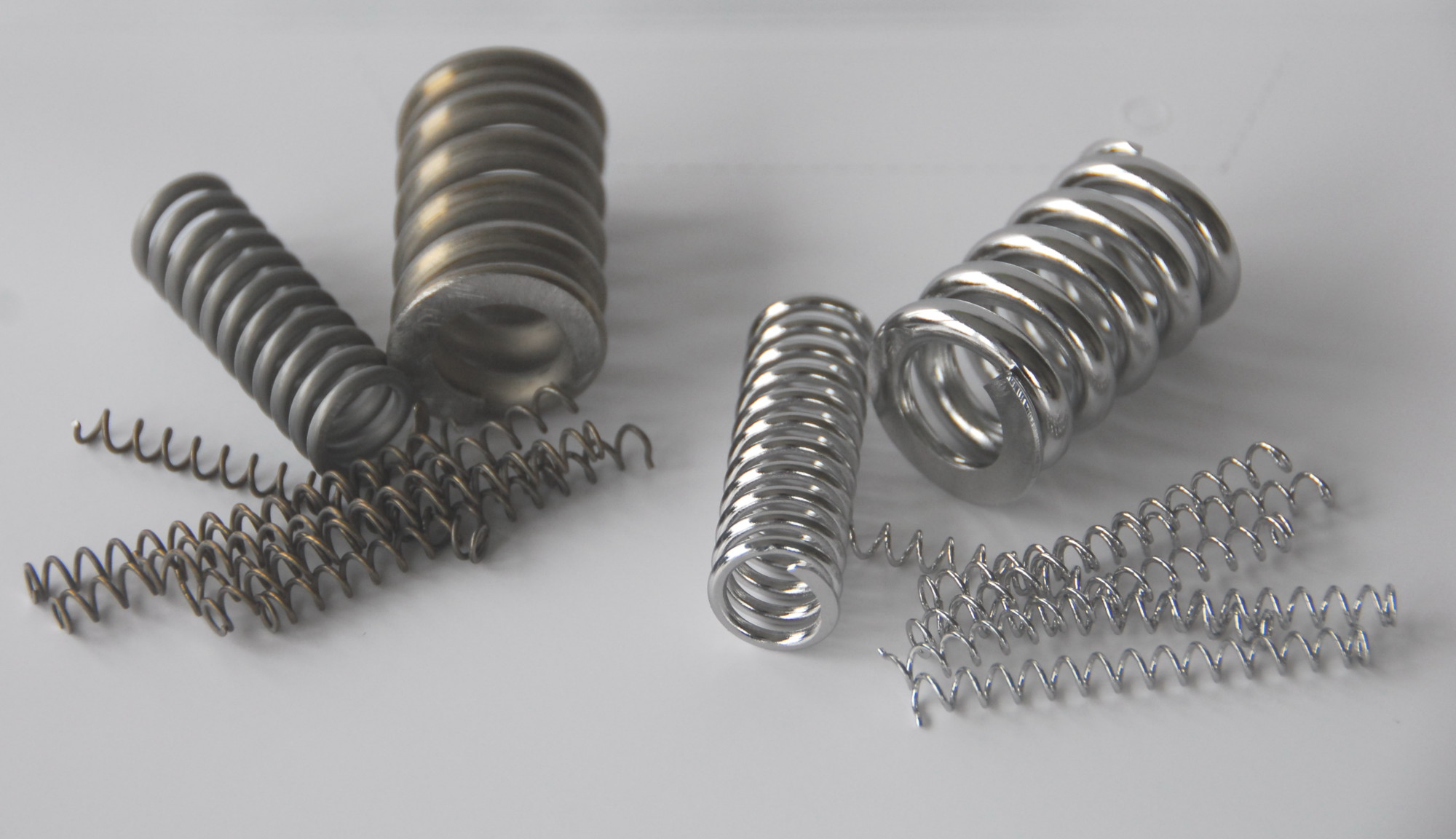

• Large quantities of small parts in drums
• Cables and strips on a continuous reel-to-reel basis

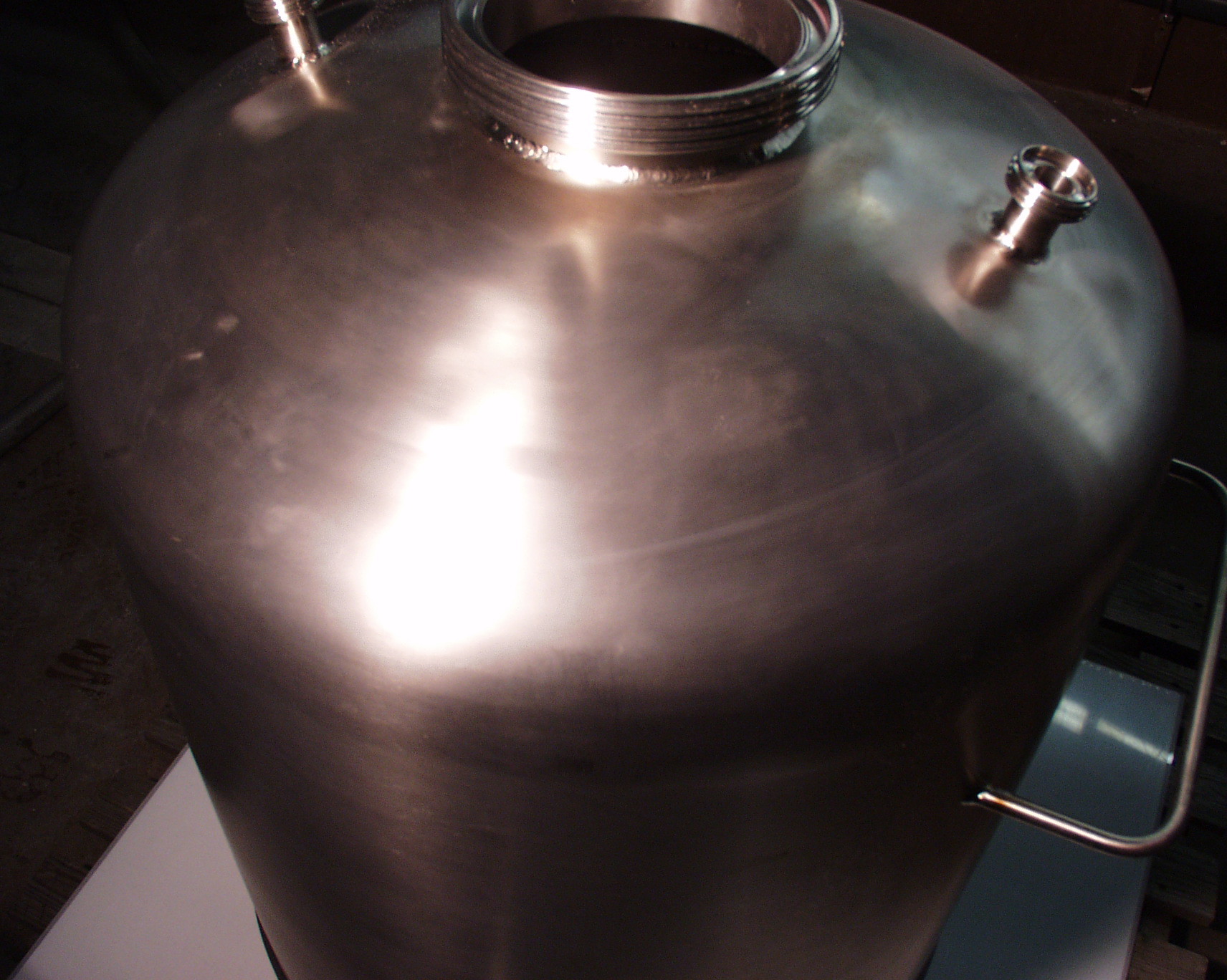

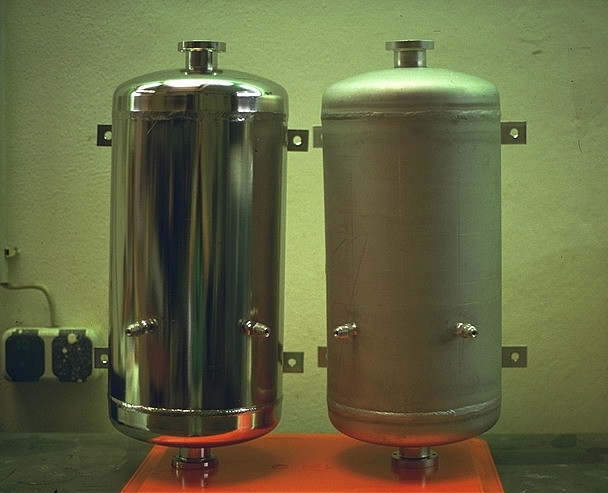

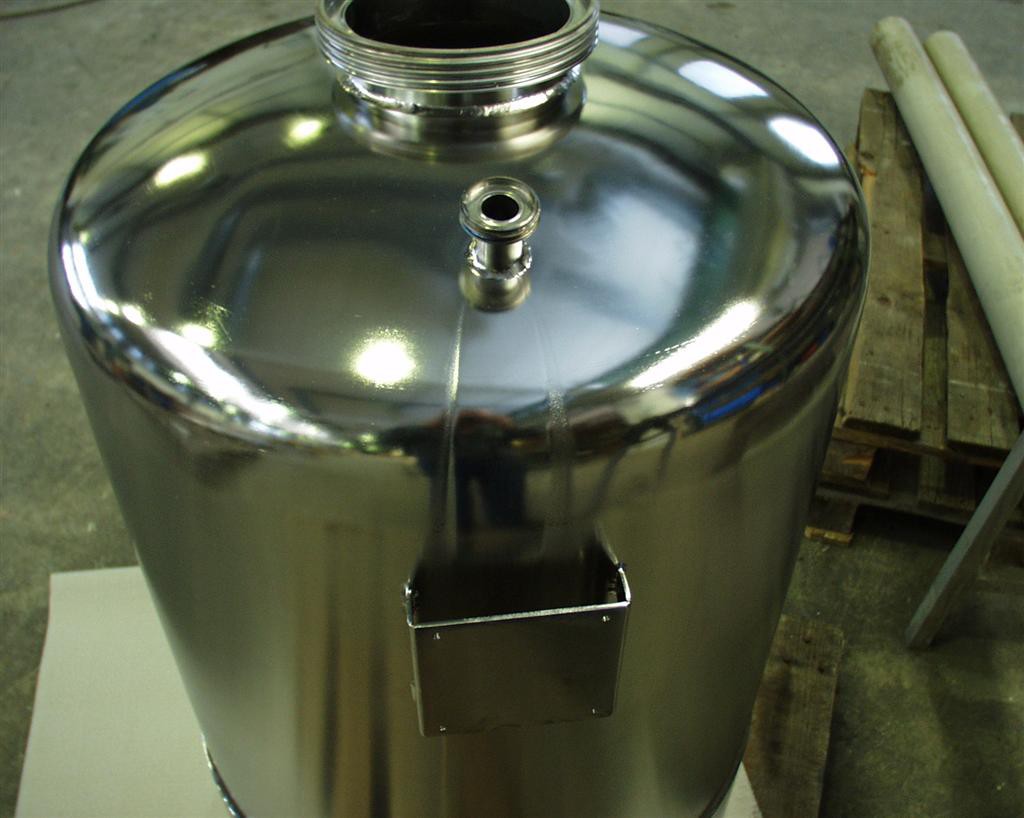

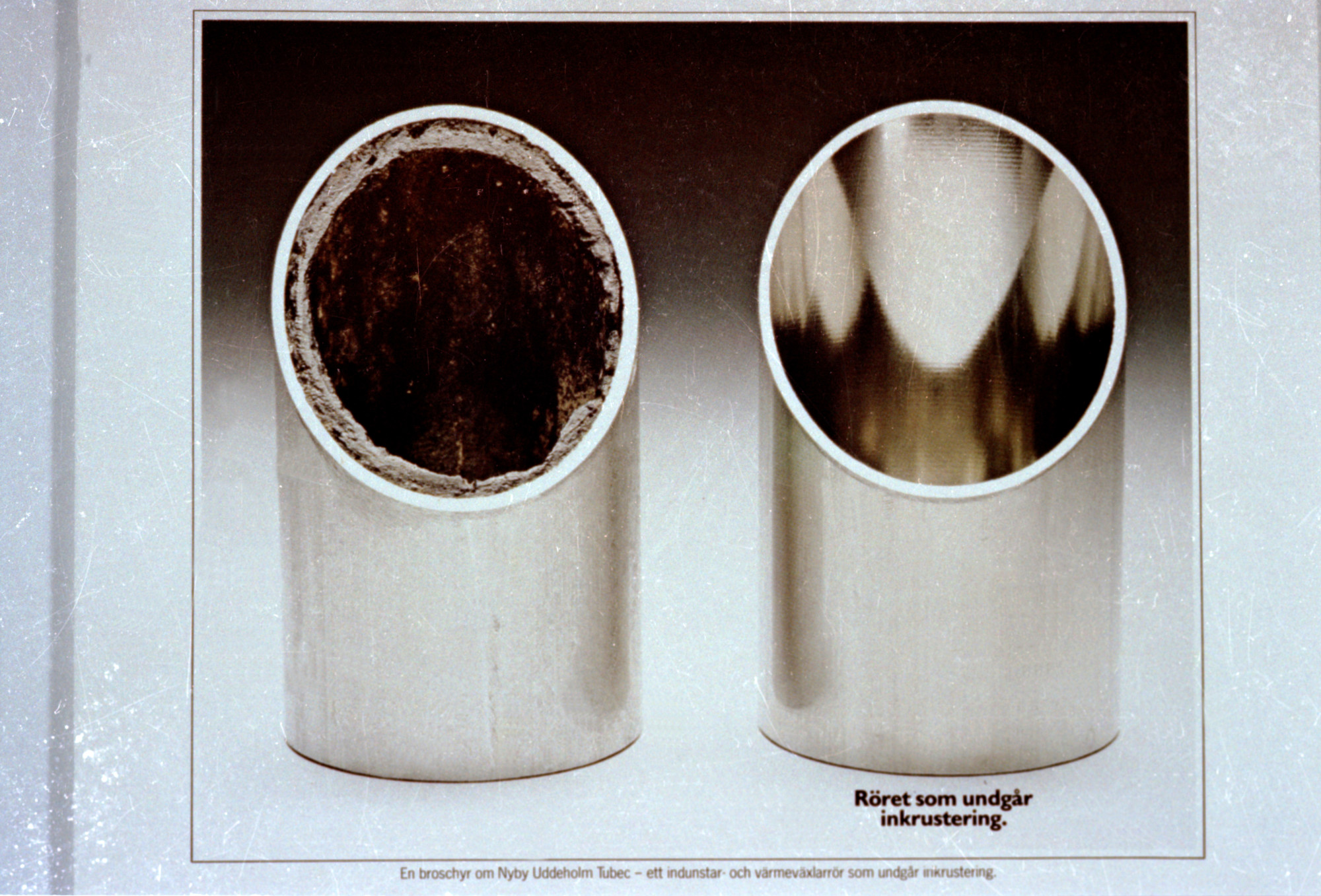

• The processing of the internals of tubes and containers in special installations



MATERIALS:
- Aluminum
- Stainless steel
- Cobalt alloys
- Carbon steel
- Copper
- Copper alloys
- Magnesium
- Nickel
- Nickel alloys
- Precious metals
- Titanium
- Zirconium
